Specialized lifting equipment for the safe lifting of piles and sheet piles, featuring remotely releasable shackles.
Foundiz offers a wide range of lifting equipment for the safe lifting and positioning of sheet piles, tubular piles, H-beams, and other foundation elements.
Tools such as ground release shackles, ratchet release shackles, and sheet pile threaders allow for more efficient work and, in many cases, can reduce the need for additional equipment, such as an aerial work platform or a crane.
In addition, this type of lifting equipment makes it possible to perform work at ground level, thereby reducing risks on the construction site.
Are you looking to purchase lifting equipment for your project? Foundiz can help you select the right solution so you can work safely and under controlled conditions.
Foundiz supplies various types of lifting equipment for foundation projects.
The product line includes, among other things:
This lifting equipment allows foundation elements to be lifted in a controlled manner, positioned, and guided precisely to the correct height during construction.
from 4 to 10 metric tons
from 17.5 to 21.5 kg
Disconnect using the cord by pulling out the pin
for hoisting steel sheet piles, tubular piles, H-beams, and steel plates
with wider bodies or special steel versions suitable for extremely cold conditions
Parts can be ordered separately
from 3.5 to 40 metric tons
from 15 to 67 kg
Disconnect by unscrewing the pin with the ratchet mechanism
for positioning steel sheet piles, steel beams, tubular piles, H-beams, and steel plates
with wide bodies or special steel versions suitable for extremely cold conditions
Parts can be ordered separately
2.5 | 12, 16, and 24 metric tons
6 kg, 25 kg, 38.5 kg, and 67.5 kg
by hand
Designed for handling steel sheet piles and pipes. Particularly suitable for loading, unloading, and storage.
Foundiz supplies a wide range of foundation equipment and machinery.
Can’t find the lifting equipment you’re looking for? Please contact us.
We’d be happy to work with you to find a suitable solution.
Be sure to check out our “Used Equipment” page for available used piling equipment, such as vibro hammers, pile driving rigs, piling rigs, and drilling and lifting cranes.
Foundiz supplies lifting equipment from Dawson Construction Plant, including specialized solutions for the safe lifting and positioning of foundation elements.
These tools are designed for use on construction sites and are characterized by their durability, reliability, and ease of use, even under harsh conditions.
Ground release shackles make it possible to safely hoist piles and sheet piles and disconnect them remotely from the work level.
The shackle is unlocked by pulling a safety clip with a metal wire using a cord or cable. This action releases the locking pin via an internal spring mechanism, after which the shackle can be easily removed while the pile or sheet pile is held in place by the pile-driving rig or crane.
This allows lifting operations to be carried out in a controlled, safe, and efficient manner, thereby preventing the need to work at heights and reducing the need for auxiliary equipment.

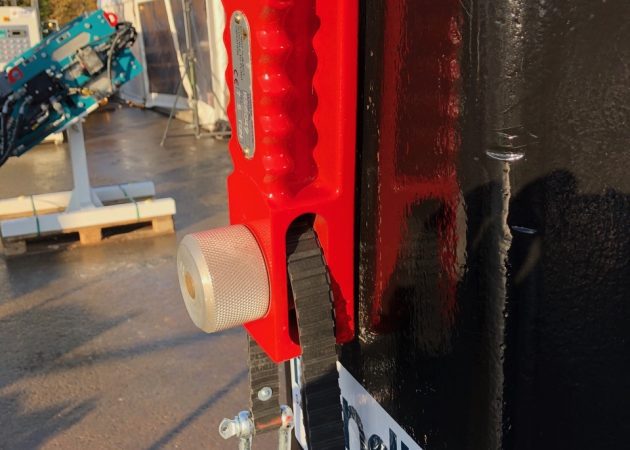

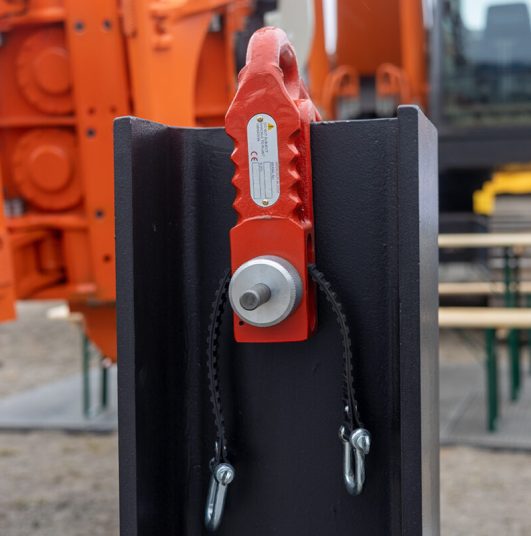

Ratchet release shackles operate on a similar principle, but are unlocked using a ratchet mechanism. Pulling a ratchet strap around a metal collar causes the locking pin to be loosened in a controlled manner.
These shackles are available in various designs and load capacities, up to approximately 40 metric tons, and can be used in a wide range of foundation projects. In addition, versions are available with wider bodies or made of special steel grades, making them suitable for use in harsh conditions, such as low temperatures.
In addition to these shackles, the product line also includes other lifting tools, such as pipe lifting shoes and steel handling tools for safely maneuvering pipes and steel sections.

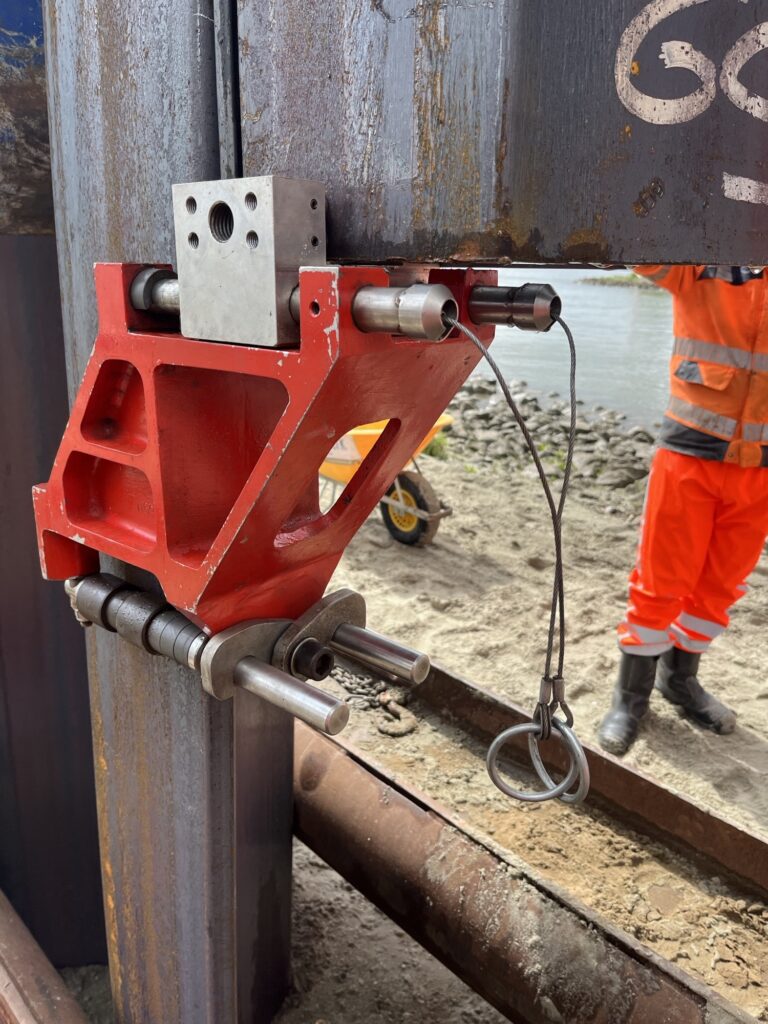

The sheet pile threader is a specialized tool designed to facilitate the controlled interlocking of sheet pile joints at greater heights. When sheet piles are out of reach of construction site workers, this tool provides a safe and efficient solution.
The threader is attached to the bottom of the new sheet pile and connected to the already installed sheet pile wall via guide rollers. During hoisting, the sheet pile is guided along the existing sheet pile wall, after which it is automatically locked into place.
Once the steam plank is positioned correctly and lowered into place, the sheet pile threader moves down with it and can be easily disconnected. This allows the process to be carried out in a controlled manner without the need for additional tools.
In foundation projects, working safely and in a controlled manner is essential. The use of specialized lifting equipment directly contributes to a safer work environment. By minimizing work at heights and positioning materials in a controlled manner, risks on the construction site are reduced.
In addition, using the right tools allows for more efficient work, since less auxiliary equipment is needed and processes run more quickly.
Support and Service
Foundiz provides support in selecting and deploying the right lifting equipment. The most suitable lifting equipment is determined based on the application and project conditions. For specific issues, lifting equipment or auxiliary devices can, in some cases, be tested on a trial basis.
Whether you’re buying lifting equipment or selecting specialized lifting tools, Foundiz works with you to find a solution that is safe and practical for the construction site.
We would be happy to advise you on the right solution for your application.
