Vby installing steel sheet piles, tubular piles, and H-beams in projects where flexibility and reach play an important role.

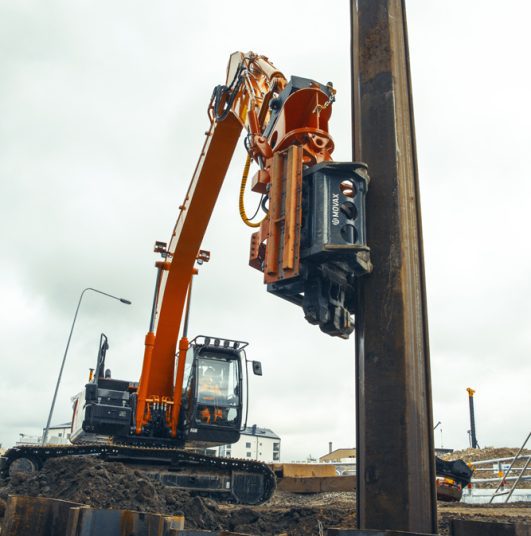

Foundiz supplies and rents movax sidegrip vibro hammers for the efficient installation of sheet piles and piles. These vibro hammers allow foundation elements to be clamped and vibrated from the side, enabling flexible operation and ensuring that the pile length is not limited by the machine’s reach.
As the exclusive dealer for the Movax vibro hammer range, Foundiz supplies high-frequency models, variable torque types, and the latest Variable Active versions.
Based on soil reports and pile specifications, Foundiz assists in selecting the right type of sidegrip vibro, tailored to the application and capacity of the machine.
Foundiz supplies the complete range of movax sidegrip vibro hammers for a variety of foundation techniques. This type of vibro hammer, featuring side arms and a universal clamp, is suitable for installing steel sheet piles, tubular piles, and H-beams. In addition, fold-out anchors and wooden piles can also be installed using a side-grip.
The side arms are specially designed to grip these elements from the side, allowing for efficient and controlled operation, even in situations where space is limited.
In addition to lateral clamping, the sidegrip vibro hammers feature a universal bottom clamp, which allows formwork planks and posts to be driven further into the ground after compaction until they reach the desired final position.
SG: 15N | 30N | 40N
150 | 300 | 400
1.6 | 3.1 | 4.1
2300 | 2300 | 2300
7–12 | 13–16 | 17–22
200–400 | 900–1,200 | 900–1,200
760 | 1485 | 1505
SG: 45 | 50 | 60 | 75
450 | 500 | 600 | 750
4.6 | 5.1 | 6.1 | 7.6
2300-3000
20–22 | 23–28 | 28–32 | 32–40
1200–2300 | 1200–2300 | 1200–2300 | 1300–2800
2390–2690 | 2400–2700 | 2550–2850 | 3330–3620
SG: 45V | 50V | 60V | 75V |
450 | 500 | 600 | 750 |
4.6 | 5.1 | 6.1 | 7.6 |
2300 | 2300 | 2300 | 2300–3000
20–22 | 23–28 | 28–32 | 33–40
1200-2300 | 1200-2300 | 1200-2300 | 1300-2800
2390–2690 | 2400–2700 | 2550–2850 | 3500–3750
Foundiz offers a wide range of movax sidegrip vibro hammers and other foundation equipment and machinery.
Can’t find the movax sidegrip vibro hammer you’re looking for? Please contact us at
. We’d be happy to help you find a suitable solution.
Be sure to check out our“Used Equipment” page for available used piling equipment, such as vibro hammers, impact hammers, piling rigs, and drilling and lifting cranes.

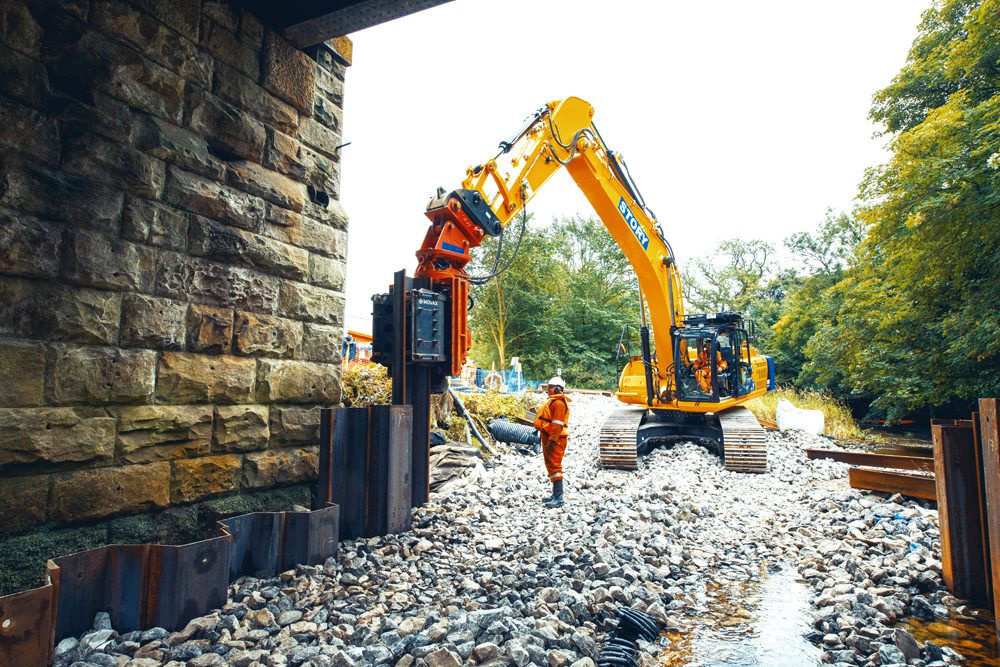

A key feature of sidegrip vibros is that foundation elements can be gripped not only from above but also from the side. This allows for the use of longer elements and reduces the height required at the construction site. In addition, the side arms allow the pile elements to be gripped independently from the ground, which also makes work more efficient.
This makes the technique particularly well-suited for projects in urban areas or at sites with limited workspace, where traditional methods are less practical.
Movax has developed the unique Variable Active system for its sidegrip vibro hammers. These high-frequency vibro hammers with variable torque allow the eccentric torque to be continuously adjusted during the work process.
The automatic adjustment of the eccentric weights minimizes vibrations during start-up and shutdown. At the same time, the torque is continuously monitored and adjusted to maintain optimal amplitude, even in varying or challenging soil conditions.
This allows the foundation element to move more freely, enabling more efficient work.
Introduction to the Active Variable System
Sidegrip: 45VA | 50VA | 65VA | 80VA
450 | 500 | 650 | 800
4.6 | 5.1 | 6.6 | 8.1
2300 | 2300 | 2300 | 2300–3000
20–22 | 23–28 | 28–32 | 33–40
1200-2300 | 1200-2300 | 1200-2300 | 1300-2600
2390–2690 | 2400–2700 | 2550–2850 | 3200–3600
With a Movax sidegrip vibro hammer, an excavator can easily be used as a multifunctional foundation rig.
In addition, Foundiz has developed a patented application in which a sidegrip vibro can be used in combination with a foundation rig equipped with a spreader. This allows a standard drilling rig to be used for installing sheet piles and other foundation techniques.
This combination increases the versatility of the machinery and makes it possible to perform multiple tasks with a single machine.
Movax sidegrip vibro hammers come with an advanced control system that allows the operator to vibrate formwork and piles in a controlled manner in a vertical position.
This mControl+ control system ensures uniform operation of all Movax products and offers extensive capabilities for monitoring and controlling the vibration process. For the sidegrip vibro hammers, you can choose between the basic LITE version and the more advanced PRO version. The advanced mControl+ PRO system provides excellent support to the operator through semi-automatic functions for positioning and vertically installing foundation elements.
Based on soil data and pile specifications, Foundiz can determine the correct type of sidegrip vibro, tailored to the pile-driving conditions and the capacity of the available excavator.
Foundiz provides support in selecting and deploying the right vibro hammer for the project.
In addition, Foundiz has a rental fleet, which makes it possible to test a sidegrip vibro in a real-world setting first. This “try before you buy” approach allows customers to experience the performance and benefits of the machines before making a purchase.
