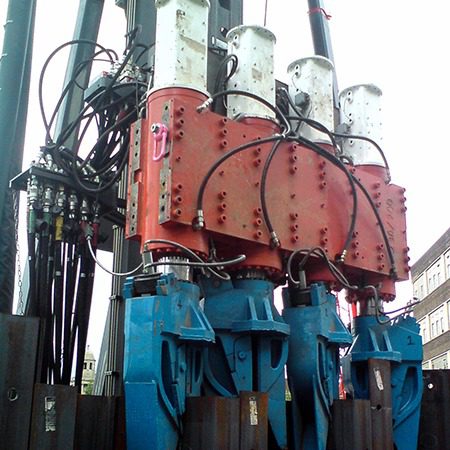

DCP 4-Cylinder Sheet Pile Driver

The hydraulic sheet pile pressing machines available for rent from Foundiz are specially designed for use in combination with a crane or foundation machine. These pressing machines allow piles and sheet piles to be driven into the ground without vibration or to be extracted by pulling. The foundation elements can be lifted using a chain, grommet, or special lifting tools and then securely gripped by the powerful hydraulic clamping jaws. Once securely clamped, the foundation element can be driven vibration-free into the ground using a substantial downward thrust. When used in a free-hanging configuration on a crane, the thrust block derives its reaction force from the adjacent elements. The hydraulic thrust block can also be used in a foundation rig with a guide rail. Because the pressure block derives part of its force from the adjacent foundation elements, the driving operation can be performed with a standard foundation rig. However, the pressure block must be equipped with a so-called backplate featuring guide rails.

Benefits

– Robust, reliable, extremely powerful, and powered separately by a power pack
– Fast operation when used in combination with a crane or foundation rig
– The sheet piles may be slightly stepped at the top, resulting in fewer restrictions regarding “working over one’s own work” as with the Silent Piler
– The hydraulic pressure blocks are supplied as a “plug-and-play” set in combination with a power pack
– Remote control for operating cylinders and the clamping function
– Foundiz also provides drive ability predictions to determine the most suitable pressure machine based on block type, soil investigation, and pile specifications

Specifications

* Number of cylinders (units) 4
* Compatible with Z-planks
* Maximum thrust or tensile force per cylinder (kN) 2078 kN
* Maximum cylinder stroke (mm) 600
* Maximum thrust speed per cylinder (mm/min) 5890
* Hydraulic operating pressure (bar) 350
* Weight (kg) approx. 13,000
