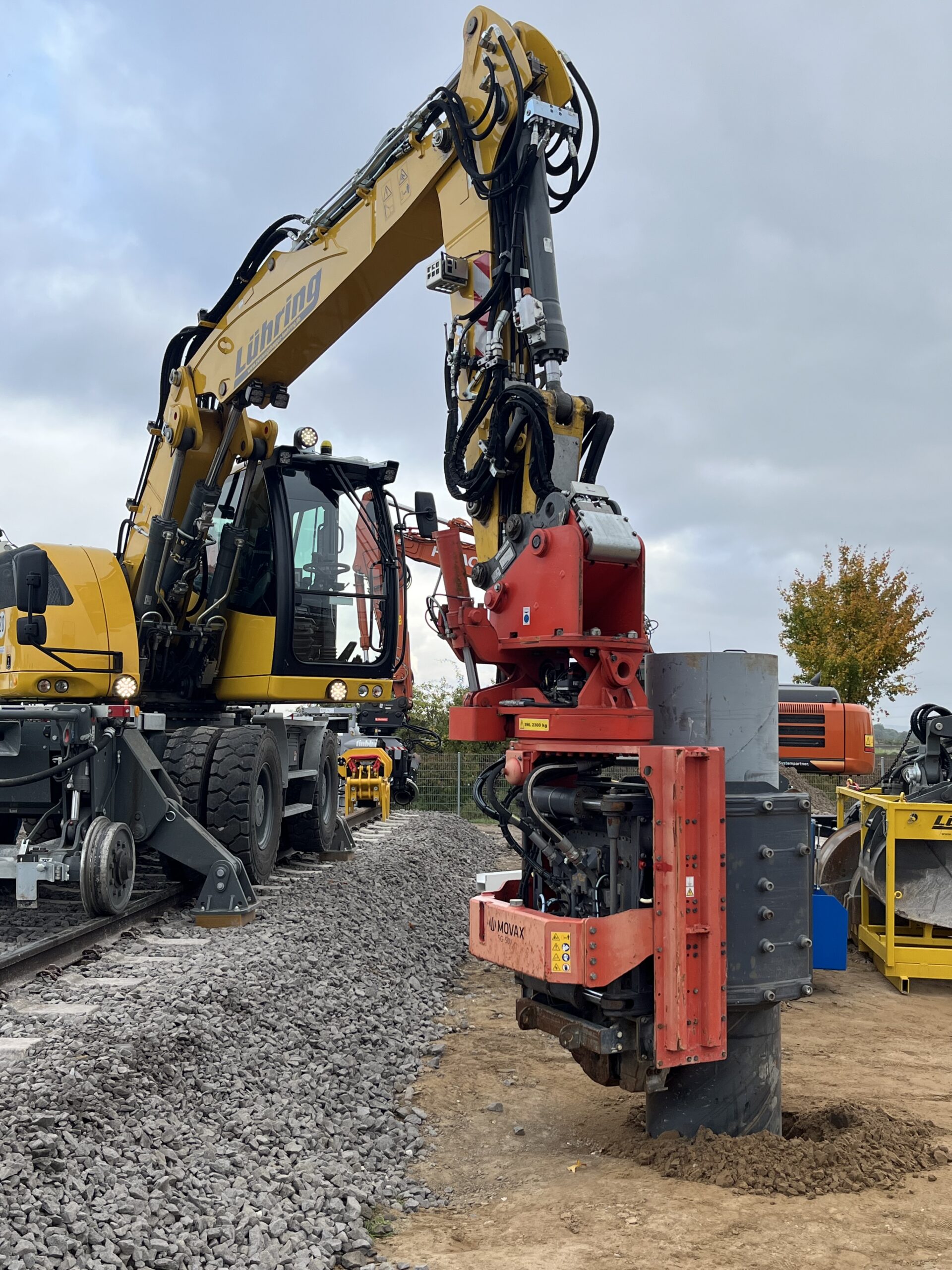

The sidegrip vibro hammers available for rent from Foundiz are specially designed for use with a hydraulic excavator. These sidegrip vibro hammers can be used to drive piles, beams, and sheet piles into the ground or to extract them by pulling. The foundation elements can be gripped using the special lateral clamping system consisting of two arms or using the sheet pile clamp on the underside of the block. Once securely clamped, the foundation element can be driven into the ground using high-frequency vibrations. The excavator’s arm can be used to apply downward pressure, driving the element into the ground even faster under the influence of additional downward force, or to pull it out using an upward force.
Advantages of the Movax SG-60
– Sturdy and reliable
– Is rented in combination with an excavator equipped with a control system for ease of use
– Thanks to its side-clamping feature, it is ideal for use in tight spaces
– The sidegrip vibro can rotate around the vertical axis
– The sidegrip vibro has a tilt function for picking up the posts
– Thanks to the side clamping function, posts that are longer than the excavator arm’s reach can be driven into the ground
– Damped design that significantly reduces vibration in the excavator
Specifications
* Eccentric moment (kgm) 6.1
* Impact force (kN) 600
* Maximum pole weight (kg) 1200–2300
* Shipping weight (kg) approx. 2550–2850
Please contact us for advice or a suitable solution from our rental fleet. We’d be happy to work with you to find the right solution.
